8051 Development Board

DESCRIPTION

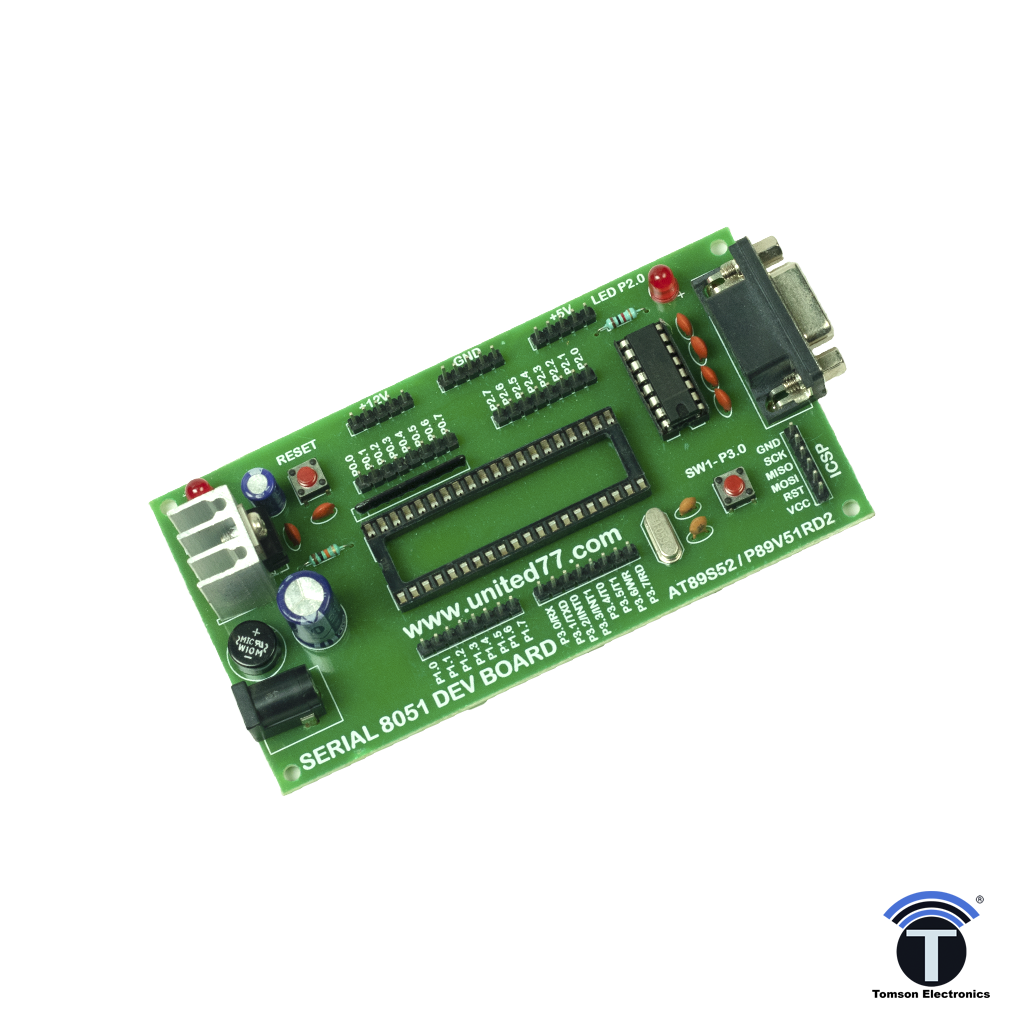

8051 Microcontroller Development Board with MAX232 & AT89S52 Microcontroller IC | 8051 Project Kit Supports 40-Pin DIP IC Chip Lis AT89S51,AT89S52,P89V51RD2 etc | 8051 Development Board or 8051 Project Kit Support Atmel AT89S51, AT89S52, P89V51RD2 etc. 40-Pin DIP Microcontroller Chip About of 8051 Development Board: If you are learning microcontroller programming and want to make project based on 8051 microcontrollers than this board will help you. With this Development board, you can develop and prototype with any of 8051(AT89S51, AT89S52, P89V51RD2, AT89Cxx) 40 pin microcontrollers. The board has also status LED. Because of The 1.5, Amp bridge rectifiers allow this board to be powered with both AC and DC power supply adapters. The board having RS232 Serial port for flashing P89V51RD2 (NXP) microcontroller and it is also used for interfacing GSM module, GPS module, RFID module. Furthermore, There is 5V, 12V, GND power bus which allows to power external peripherals module.

SPECIFICATION

• DIP 40 Pin IC Socket For Easy Insert/Removal of Chip.
• On-board MAX232 Circuit for Easy Communication with a PC & other RS232 serial devices (GPS modules, GSM Modems, etc)
• High-quality FR-4(1.6 mm) PCB
• On-Board bridge rectifier so the board can accept both AC & DC Input voltages Power supply
• 5 mm Power Plug-in DC Jack | Power ON-OFF switch.
• 5V regulator (LM7805) circuit.
• Power indication RED LED.
• On-Board GREEN USER LED at P2.0 through jumper JP3.
• On-Board Input User Switch P3.3 through jumper JP2.
• On-Board Input External Interrupt Switch (INT1) at P3.3 through jumper JP2.
• On-board Quartz Crystal 11.05892 MHz
• Support AT89S51, AT89S52, P89V51RD2 etc. 40-Pin DIP Chip
• Port Extensions for all PORT with Detailed Labeling for Easy Identification of Pin
• External Pull-Up resistors for Port 0
• On-board ISP connector for loading HEX file into Microcontroller like AT89S51/52 etc
• Extra Vcc bus (5V and 12V) & GND bus for POWER Supply to the External Peripheral.
• Four 3mm mounting hole for easy mounting
• On-board Reset button.
