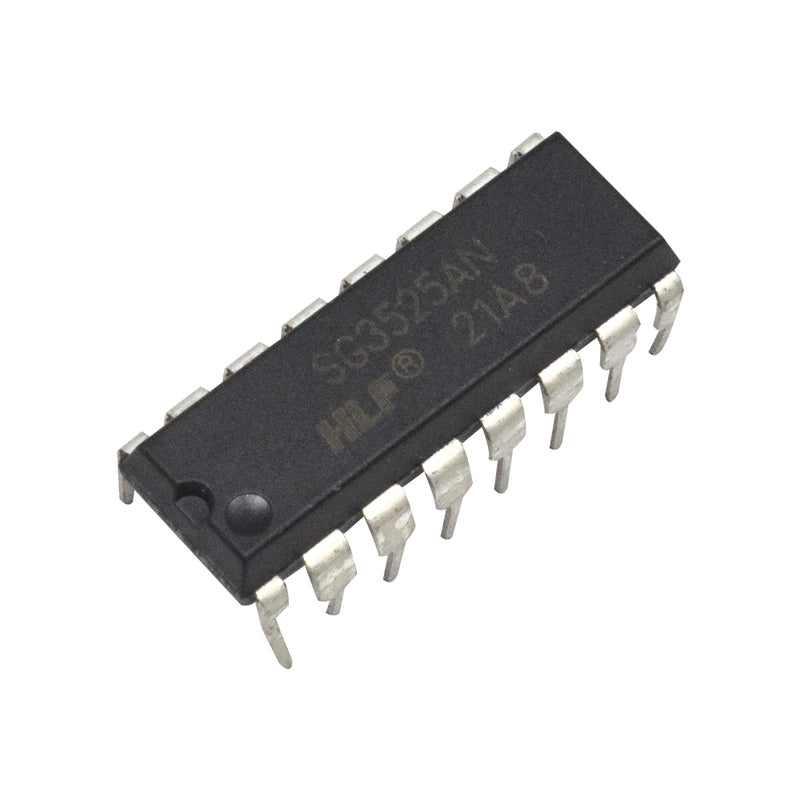

SG 3525 – PWM Controller IC for Switching Regulators

The IC SG3525 HLF is a high-performance PWM controller IC designed for switching power supply applications. It provides precise pulse width modulation control, making it ideal for DC-DC converters, inverters, and SMPS circuits.

Key Features:

• High-Efficiency PWM Control: Optimized for switching regulator applications.
• Built-in Oscillator: Adjustable frequency operation for versatile applications.
• Soft-Start Circuitry: Reduces inrush current during startup.
• Overcurrent Protection: Enhances system safety and durability.
• Dual Output Drivers: Supports push-pull and bridge configurations.

Package Includes:

• 1 x IC SG3525 HLF – PWM Controller IC
