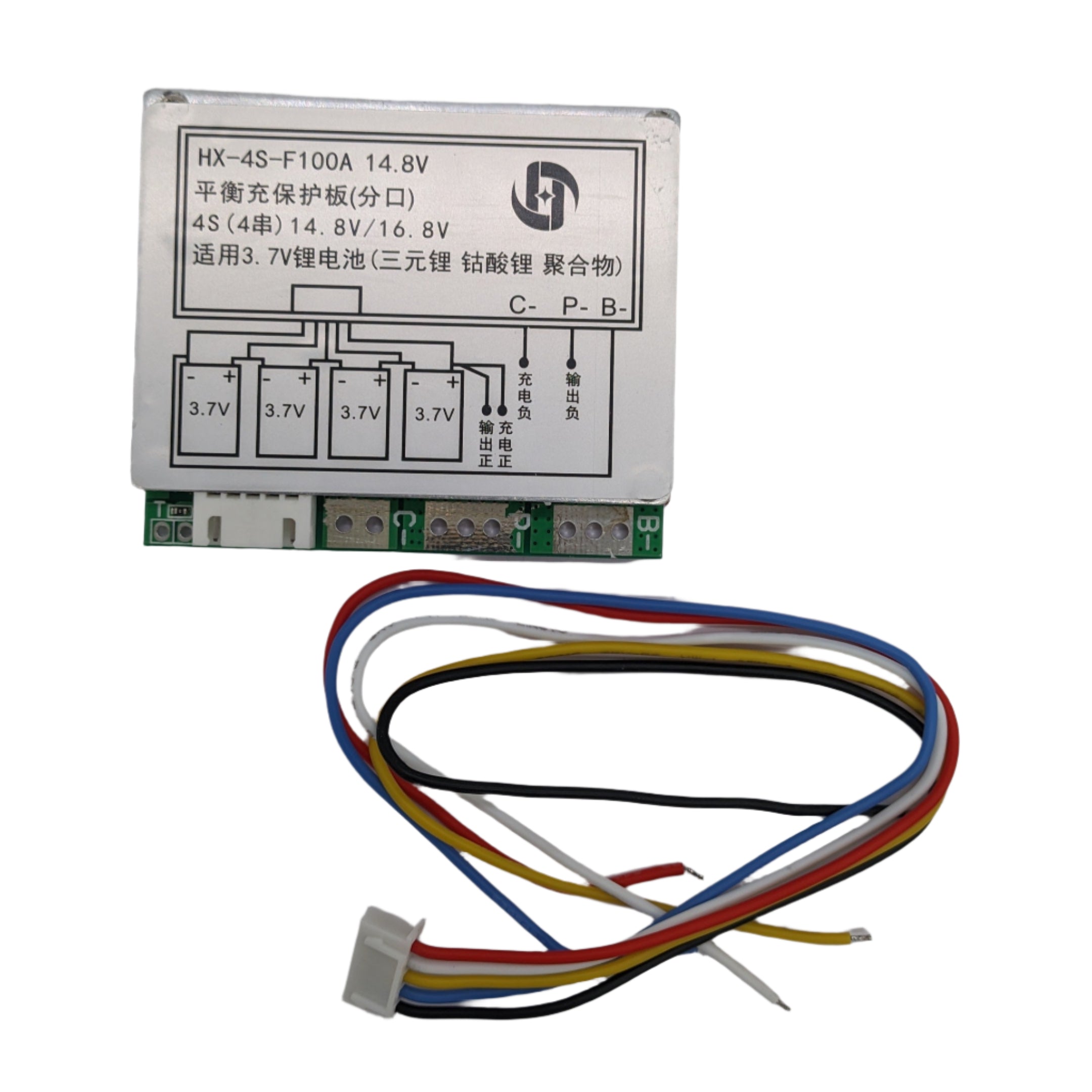

4S 14.8V 100A Lithium Battery Management System (BMS) with Protection Circuit ( JST Connector included ) | HX-4S-F100A

The 4S 100A Lithium Battery Management System (BMS) is designed for 4-series lithium-ion battery packs, ensuring reliable protection and support for high-power applications. With a nominal voltage of 14.8V and a maximum charge voltage of 16.8V, this BMS supports a continuous discharge current of 100A. It is perfect for electric vehicles, solar systems, and other demanding applications. Integrated with overcharge, over-discharge, overcurrent, and short-circuit protection, this BMS ensures your battery pack's safety and efficiency.

Key Features:

• Voltage Management: Designed for 4S lithium-ion battery packs with a nominal voltage of 14.8V and a charge voltage of 16.8V.
• Overcharge Protection: Stops charging at 4.25V ± 0.05V per cell.
• Over-Discharge Protection: Disconnects load at 2.5V ± 0.05V per cell for battery safety.
• High Current Handling: Supports a continuous discharge current of 100A and peak currents up to 120A.
• Comprehensive Safety: Integrated overcharge, over-discharge, overcurrent, and short-circuit protection.

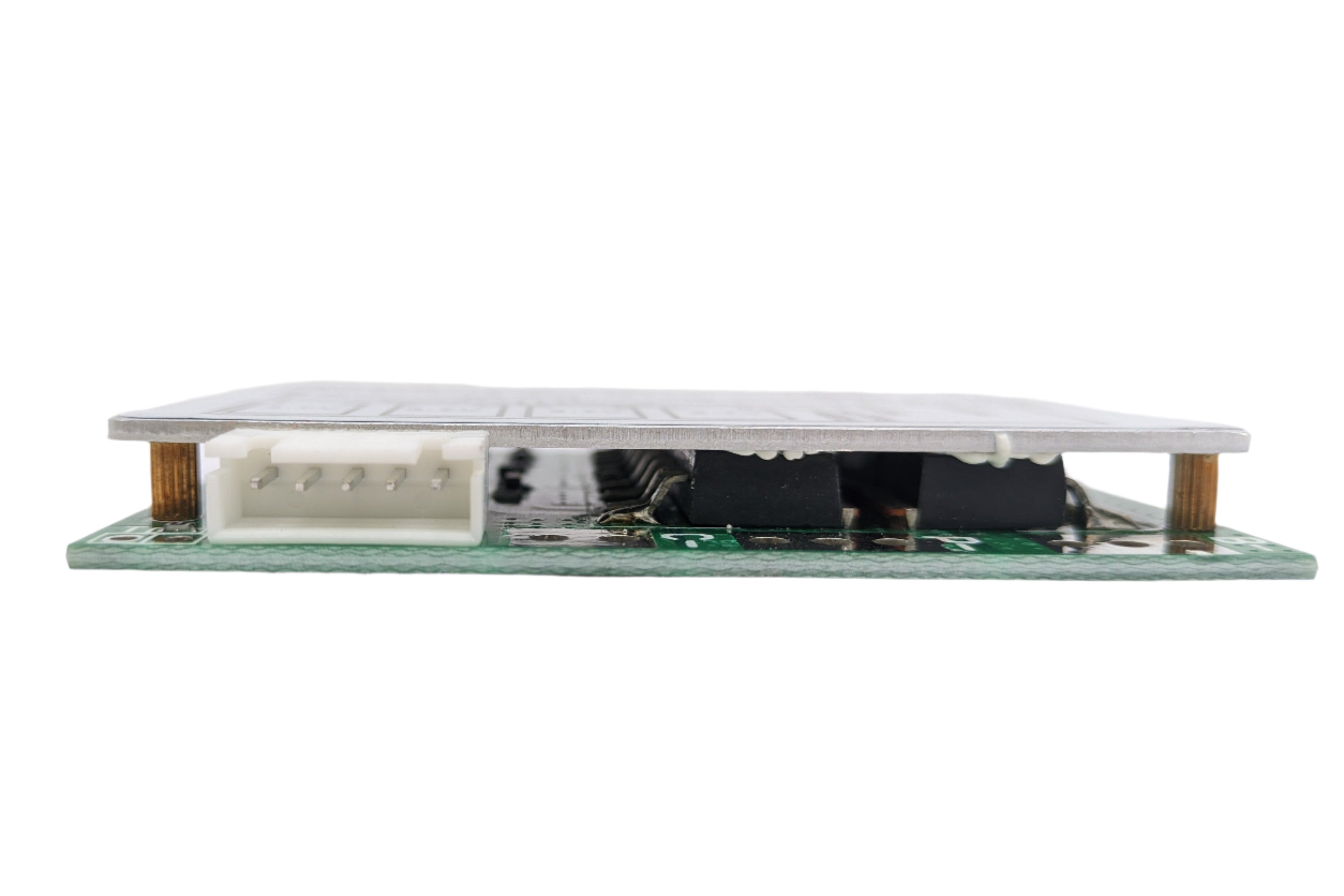

• Heavy-Duty PCB Design: Built to handle high current loads with efficient heat dissipation.
• Compact Form Factor: Fits neatly into custom battery pack designs.
• Easy Installation: Clearly labeled solder points simplify assembly.

Package Includes: 1 x 4S 14.8V 100A Lithium BMS with Protection Circuit
